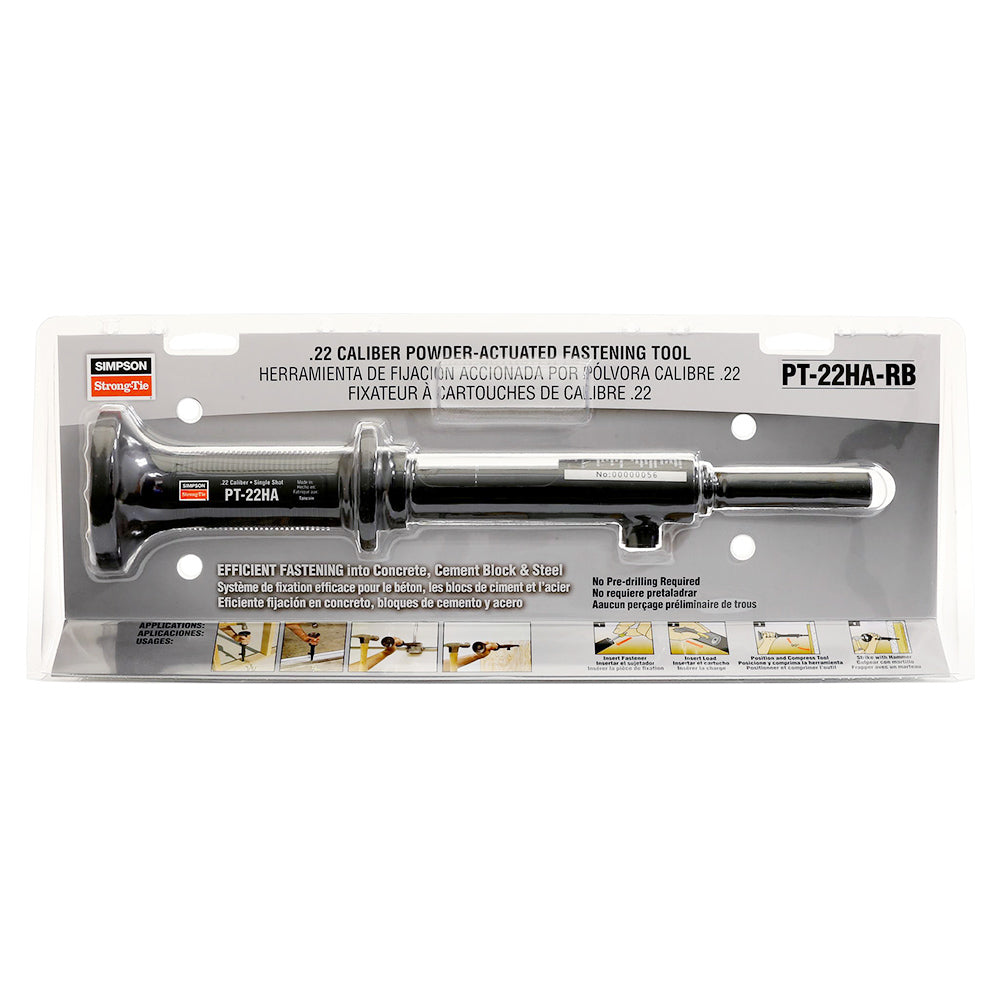

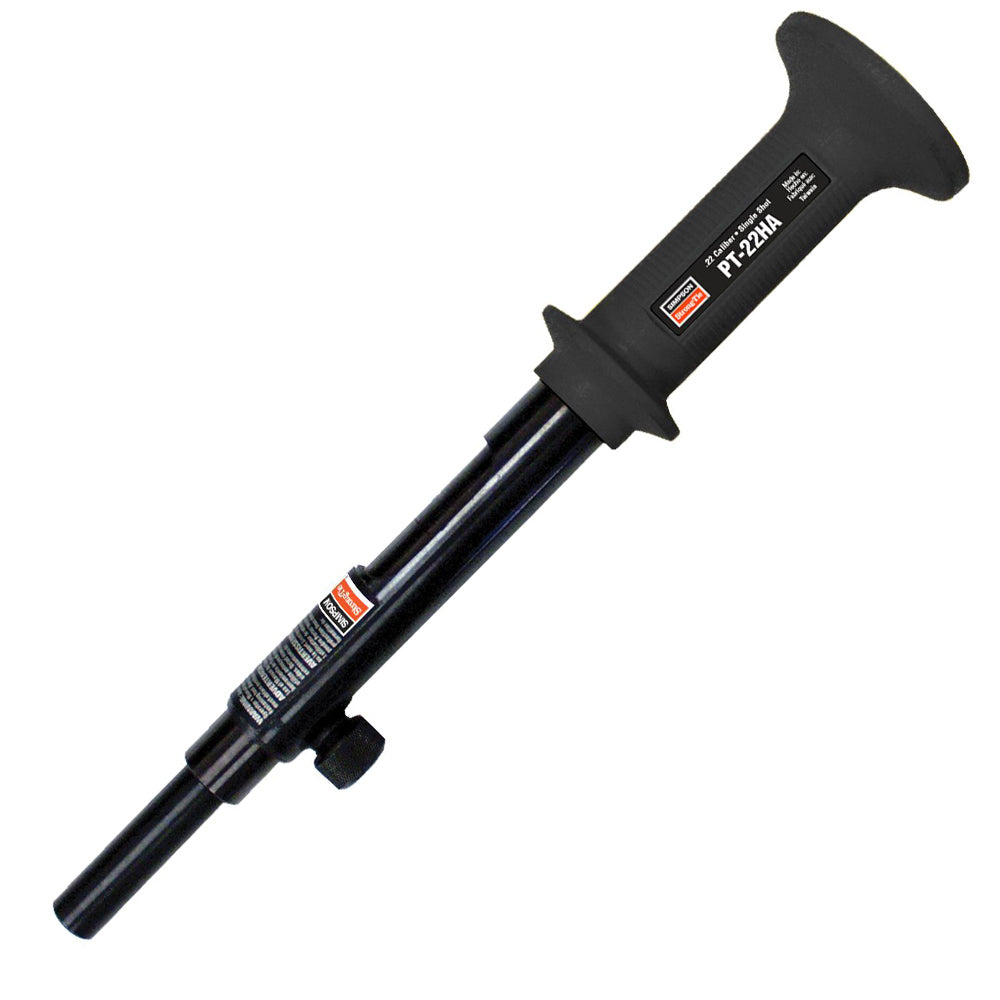

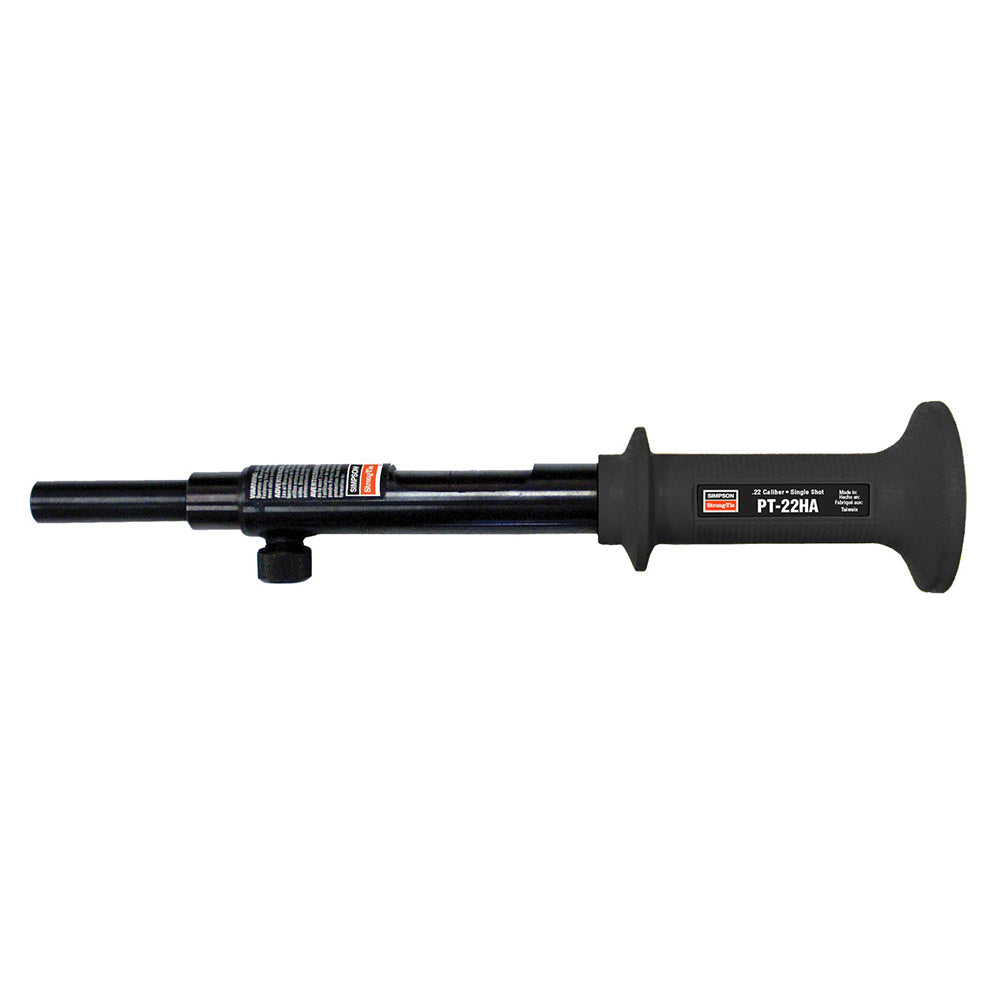

Simpson Strong-Tie .22 Caliber Power-Actuated Fastening Tool

The PT-22HA is a small, powder-actuated direct fastening tool. The design includes a large strike point and comfortable grip, making it ideal for a range of DIY projects. This easy-to-use tool is hammer-activated and engineered for low maintenance.

• 0.22 caliber “A” crimp load caliber
• Maximum pin length of 3"
• Three levels of power: brown through yellow loads (levels 2–4)

Applications

• Fastening to Structural Steel
• Direct Fastening
• Concrete
• Cold-Formed Steel
• Wood / Residential Construction


Specifications

• Fastener length: 3” maximum
• Fastener type: 0.300" or 8 mm-headed fasteners or 1/4"–20 threaded studs
• Firing action: Single shot, hammer activated
• Load caliber: 0.22 single “A” crimp loads, brown through yellow (levels 2–4). Note: Not for use with 0.22-caliber straight wall loads.
• Length: 14 1/4"
• Weight: 2 lb., 12 oz.
