Johnson Self-Leveling Rotary Laser System
Johnson Self-Leveling Rotary Laser System is backordered and will ship as soon as it is back in stock.
Johnson Self-Leveling Rotary Laser System
Highlights
Perfect for small jobsites, this rotary self levels in the horizontal plane and manually levels in the vertical plane. The rotary also features an illuminated vertical vial and adjustable rotational speeds of 200, 400 or 600 RPM. Accuracy is never a problem thanks to the visual and audible alarms that alert you when the rotary is beyond its leveling range and the locking compensator that protects the inner pendulum during transport. With the included wall/ceiling mount, 8-foot grade rod, detector and clamp, tinted glasses, magnetic target, elevating tripod and hard-shell carrying case, this leveling system will get your jobsite up and running!
PRODUCT DETAILS

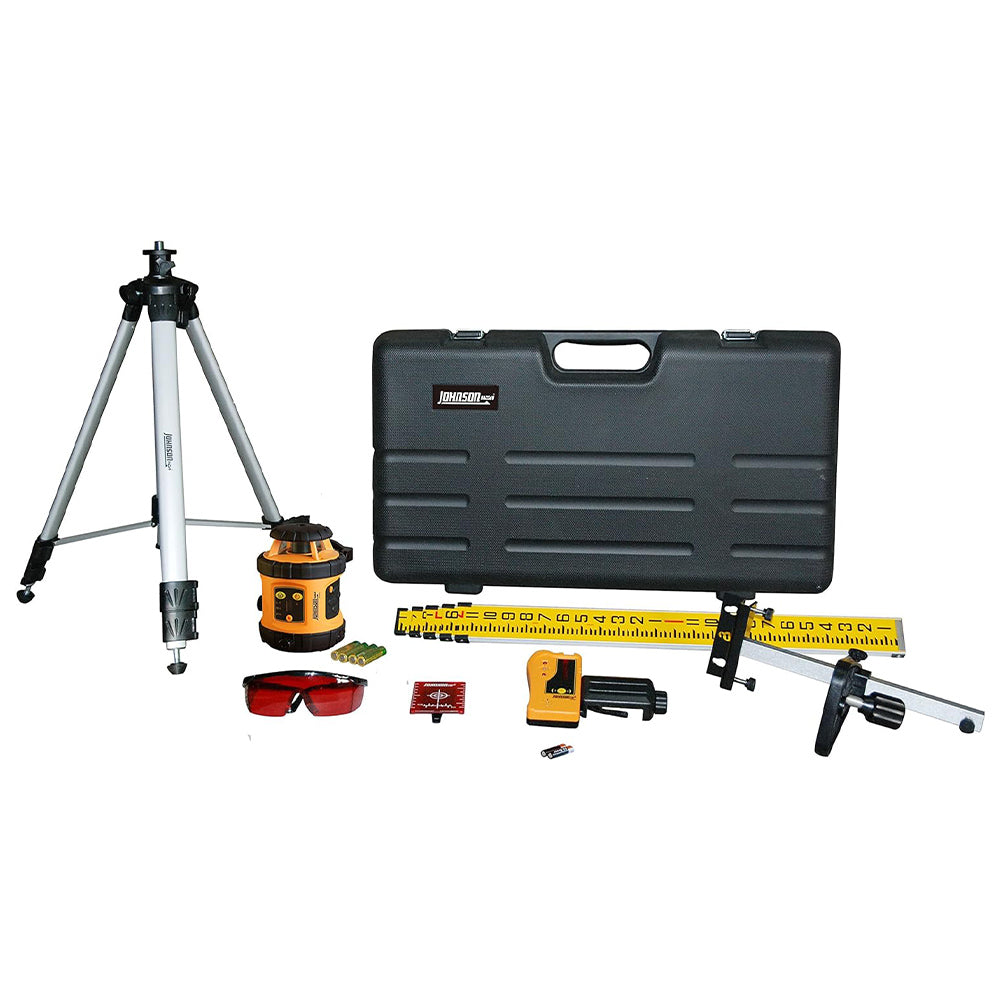

40-6517 System Includes > Laser, 4 “AA” alkaline batteries, wall-ceiling mount, 8 ft. grade rod, detector with 2 “AAA” alkaline batteries and clamp, tinted glasses, magnetic target, elevating tripod, and hard-shell carrying case.
- Self-leveling in horizontal plane
- Locking mechanism protects inner pendulum during transportation
- Manual-leveling in the vertical plane with 90 degrees split beam
- Visual and audible alarms when beyond leveling range
- Laser rotates at 200, 400, 600 RPM
- Illuminated vertical vial
| Accuracy | ±1/8"/50 ft. |
| Battery Life | Approximately 20 hours continuous use |
| Center Screw Thread | 5/8"-11 |
| Dimensions | 6.61" x 4.96" x 6.69" |
| Exterior Range | Up to 800 ft. diameter with detector (included in 40-6516 and 40-6517) |
| Interior Range | Up to 200 ft. diameter depending upon light conditions |
| IP Protection Class | 54 |
| Laser Classification | Class Illa |
| Laser Wavelength | 635nm±10nm (Red) |
| Leveling Method | Self-leveling (Pendulum) |
| Maximum Power Output | ±5° |
| Power Supply | 4 "AA" alkaline batteries (included) |
| Rotation Speeds | 200, 400, 600, RPM |
| Self-Leveling Rande | ±3° |
| Working Temperature | 14°-113°F |
| Weight | 3.30 LBS |
