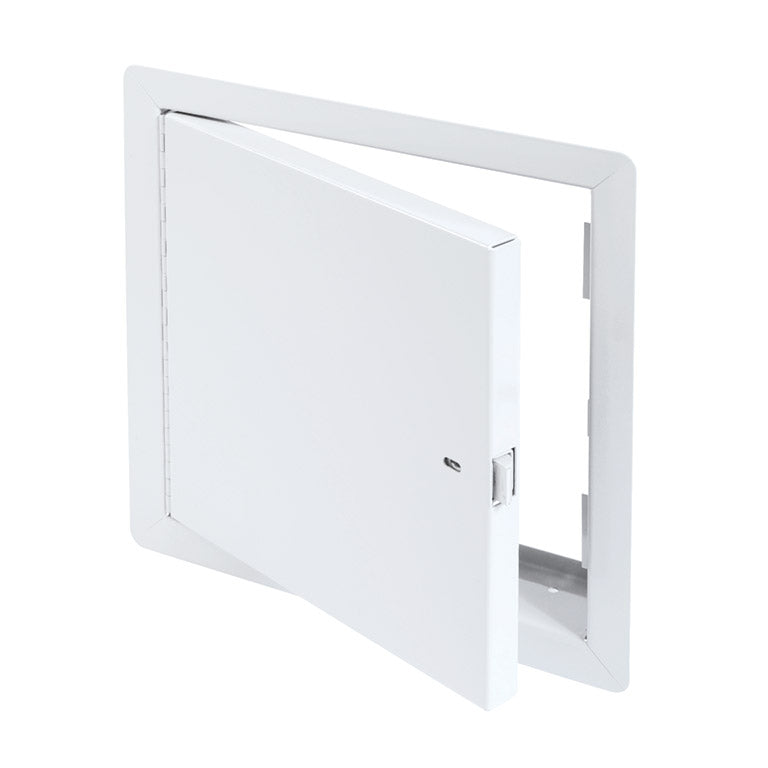

Fire-Rated Access Doors

$218.99 CAD

Size

Highlights

Description

The fire rated uninsulated access door can be used on fire rated walls.

Specifications

  • Material

    16 gauge cold rolled steel

  • Hinge

    Continuous piano hinge. Hinge location: Hinges must be located on the second dimension (height).

  • Locking mechanism

    Self-latching tool-key operated slam latch and ring operated slam latch, both included.

  • Flange

    1" exposed flange

  • Frame

    2½ " in depth, made of cold rolled steel

  • Rough opening

    Door sizes + ¼" or + 6mm

  • Inside panel release

    Mechanisms to allow panels to open from inside, standard on all doors over 12" X 12 inches.

  • Finish

    High quality white powder coat primer.

  • Packaging

    Individually wrapped, 1 door per box.

Fire rated access doors, for vertical use, are subject to the following:
  • Vertical wall assemblies
  • Fire rated access doors, for vertical use, are subject to the following:
  •  Certification
  • UL 10B (2009), NFPA 252 (2012), CAN/ULC S104 (R1985), CAN/ULC S104 (2010).
  •  Rating Achieved
  • 1-½ hours, neutral/negative pressure
  •  Maximum size
  • 36" x 36" (914 mm x 914 mm), maximum area of 1296 in², tolerance on height and width limitation is more or less 3" (76mm) as long as the area does not exceed 1296 in².
  •  Temperature rise
  • No rating achieved
